| Place of Origin | CHINA |
| 브랜드 이름 | ZHENGZHOU LANSHUO |
| 인증 | CE |
| Model Number | LSW-30 |
| parameter | Power | 30KW |
| DC current | 50A | |
| DC voltage | 500V | |
| Input voltage |
Three-phase 380V/420V/440V,50-60HZ |
|
| Heating frequency | 25-50KHZ | |
| Air switch | 3*100A | |
| Ground wire | 1mm² | |
| Water pressure | 0.15-0.2MPa | |
| Dimension(after packing) | 750mm*350mm*720mm | |
| Weight(after packing) | 58KG |
|
Power installation |
Input power cord | 10mm²copper wire |
| Input power control switch | 3*100A | |
| Equipment grounding wire |
1mm²soft copper wire |
| Cooling water installation | Number of water in the control cabinet |
water intake:one water outlet:one |
| Water pipe specification | Inlet water pipe’s inner diameter :25mm | |
| Water outlet pipe’s inner diameter :25mm | ||
|
Cooling system (two choices) |
Use 2m³water tank + 1.5kw circulating pump(head 25m, flow 10m³/h) | |
| 2P chiller |
| List of goods | 30kw induction brazing machine | 1 set |
| Foot switch | 1 set | |
| Induction coil(according to the workpiece design) | 1 set |

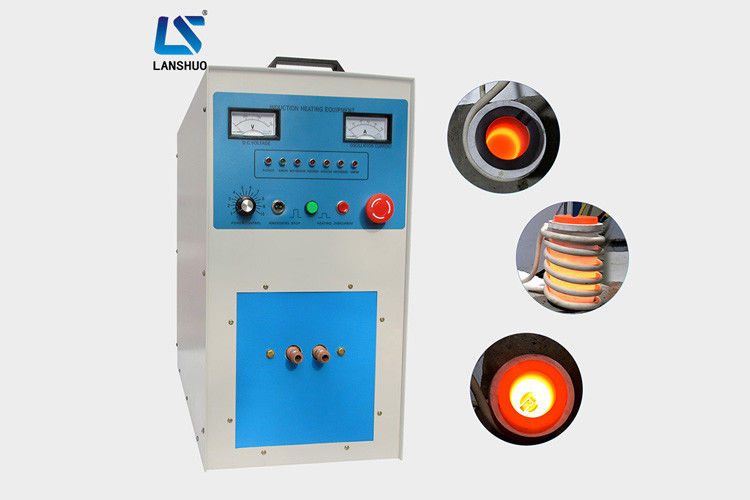

Picture of LSW-30:
CE:
