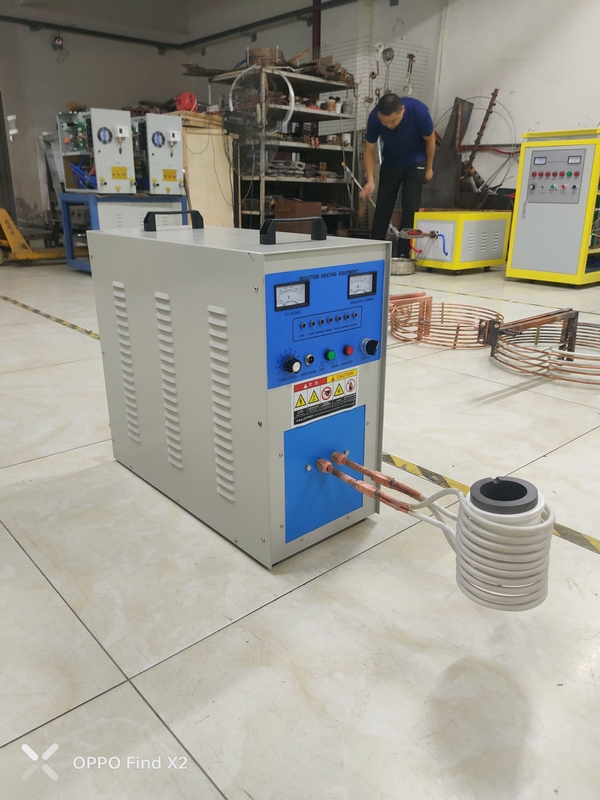

Small Glass Melting Furnace Induction Melting Furnace

원래 장소	중국
브랜드 이름	Lanshuo
인증	CE
모델 번호	LSW-30 유도 용융 기계

제품 세부 정보

유형:

유도 용융 기계

용법:

가열 용융 브레이징 용접

녹는 용량:

1-5kg 유리

평가 된 전력:

30kW

전압:

380V

입력 전압:

Triphase 380V 50/60 Hz

핵심요소:

IGBT 모듈

진동 주파수:

25-40kHz

강조하다:

small glass melting furnace

induction melting furnace for glass

compact induction furnace with warranty

지불 및 배송 조건

최소 주문 수량

1 세트

가격

USD 1500-2000 / set

포장 세부 사항

합판 케이스

배달 시간

5-7 선불 결제를 받은 후 일로 일합니다

지불 조건

L/C, D/A, D/P, T/T, Western Union, MoneyGram

공급 능력

연간 3000 세트/세트

제품 설명

1kg 2kg 3kg 5kg Glass Melting Furnace Industrial Furnace Crucible Furnace

Product Brief Introduction

Our high frequency induction melting furnace adopts IGBT series and parallel induction heating technology as the core. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.

LSW-30 Portable Electric Stainless Steel Induction Melting Machine

Applications

Iron, pig iron, cast iron
glass, glass bottle
Steel, stainless steel, cast steel, carbon steel and bearing steel
Precious metals such as gold and silver
Copper, brass, bronze
Aluminum, aluminum alloy
Zinc, lead, tin, magnesium, nickel, titanium

Product Overview

The LSW series high frequency induction melting furnace adopts IGBT series and parallel induction heating technology as its core. Designed to melt metal into liquid using high temperature, this machine is suitable for smelting various metals including iron, steel, copper, aluminum, zinc, and precious metals.

Technical Parameters

Model	LSW-30KW
Input Power	30KW
Input voltage	Three phase 380v 50hz
Voltage range	340V~420V
Oscillation frequency	25-35Khz
Current(max)	52A
Continuous load rate	100%
Cooling water flow(controller)	25L/Min 0.1mpa
Weight	48kg
Dimension	265600540mm

Key Features

High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
Energy saving: The induction heating machine adopts IGBT from & LC series circuit design, saving energy up to 15%-30%.
Low cost: The heating time is short, significantly reducing metal loss compared to other heating methods.
Easy installation: Following the user manual, even non-professional persons can install the machine easily.
Stable operation: Complete protection system ensures worry-free operation.
Environmentally friendly: Uses electricity, producing minimal waste gas and water.
