10kg 20kg 30kg 50kg Iron Smelting Furnace Induction Melting Furnace

원래 장소	중국
브랜드 이름	Lanshuo
인증	CE
모델 번호	LSZ-45

제품 세부 정보

종류:

인덕션 녹화 오븐

힘:

45 kw

입력 전류:

80A

전압:

3 단계 380v, 50/60 hz

발진 주파수:

1-15KHZ

연결 배선:

35mm2

제어 스위치:

3*120A

접지 배선:

2mm2

냉각수 압력:

≥0.2Mpa

냉각수 순환량:

≥15L/min

색상:

사용자 정의 가능

총 차원:

1250*840*1000mm / 720*440*630mm

총 중량:

250 킬로그램

적용:

제련 철강 구리 황동 골드 실버 알루미늄

강조하다:

Iron Smelting Induction Melting Furnace

10kg Iron Smelting Induction Melting Furnace

50kg Iron Smelting Induction Melting Furnace

지불 및 배송 조건

최소 주문 수량

1 세트

가격

USD 4000---6000 / set

포장 세부 사항

접착판 케이스, 2개의 패키지, 1250*840*1000mm / 720*440*630mm

배달 시간

5-10 선불 결제를 받은 후 일로 일합니다

지불 조건

L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램

공급 능력

매년마다 2000 세트

제품 설명

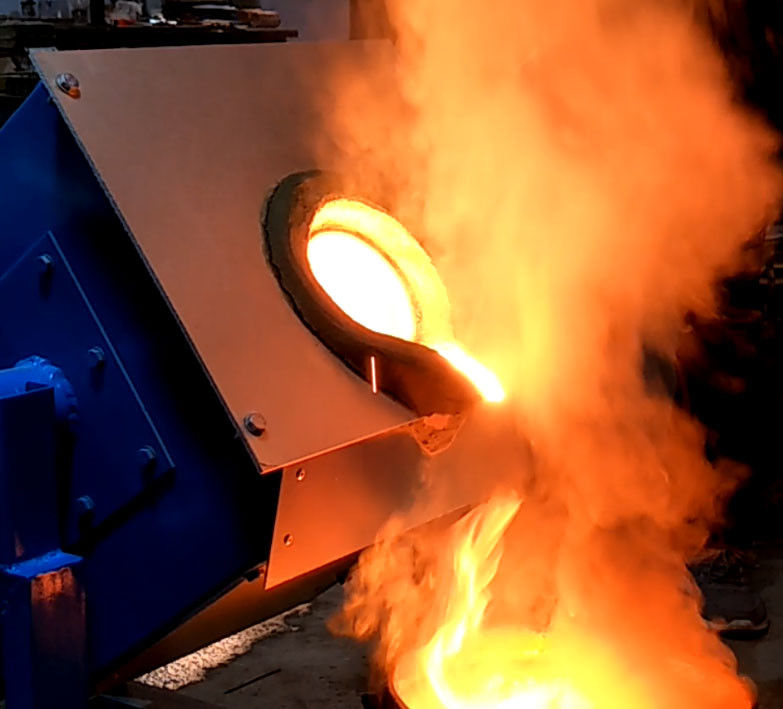

45kw Electric Smelting Furnace Induction Melting Furnace

I. Brief introduction of induction melting furnace

Medium frequency induction melting furnace adopts IGBT as the core inverter. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.

10kg 20kg 30kg 50kg Iron Smelting Furnace Induction Melting Furnace 0

II. Applications of LSZ series induction melting furnace

The LSZ series induction melting furnace can melt the following material:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) precious metal like gold, silver;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.

III. Melting Capacity of LSZ series Induction Melting Furnace:

Model	Rated Power	Melting Capacity
Model	Rated Power	steel, stainless steel	copper, gold, silver	aluminum, aluminum alloy
LSZ-15	15kw	3kg	10kg	3kg
LSZ-25	25kw	5kg	20kg	5kg
LSZ-35	35kw	10kg	30kg	10kg
LSZ-45	45kw	18kg	50kg	18kg
LSZ-70	70kw	25kg	100kg	25kg
LSZ-90	90kw	40kg	120kg	40kg
LSZ-110	110kw	50kg	150kg	50kg
LSZ-160	160kw	100kg	250kg	100kg

III. Main technical parameters of LSZ series induction melting furnace:

Model	Power	Input current	Voltage	Oscillation frequency	Connecting wire	Control switch
LSZ-15	15kw	18A	3-phase 380V, 50/60 Hz	1-15KHz	10mm2	3*40A
LSZ-25	25kw	36A			10mm2	3*60A
LSZ-35	35kw	57A			16mm2	3*80A
LSZ-45	45kw	80A			35mm2	3*120A
LSZ-70	70kw	110A			50mm2	3*150A
LSZ-90	90kw	140A			75mm2	3*225A
LSZ-110	110kw	160A			90mm2	3*225A
LSZ-160	160kw	240A			120mm2	3*300A

IV. Main Features of LSZ series Induction Melting Furnace:

(1) IGBT module imported from .

(2) Higher reliability and lower maintenance cost.
(3) 100% Duty cycle. Continuous working is allowed at maximum output power.

(4) Display of heating power, heating current and oscillation frequency.
(5) Simple to install. Installation can be done by unprofessional persons very easily.
(6) Convenient to change crucibles for different melting material.

(7) Continuously heating ability for 24 hours.

V. Factory Photo:
10kg 20kg 30kg 50kg Iron Smelting Furnace Induction Melting Furnace 2
VI. Certificates:

10kg 20kg 30kg 50kg Iron Smelting Furnace Induction Melting Furnace 3

10kg 20kg 30kg 50kg Iron Smelting Furnace Induction Melting Furnace 4

10kg 20kg 30kg 50kg Iron Smelting Furnace Induction Melting Furnace 5
